Genetic effects of ionising radiation

Martin Walter, MD, internal medicine, member of the board of PSR/IPPNW/Switzerland (Physicians for Social Responsibility, International Physicians for the Prevention of Nuclear War, swiss affiliate of IPPNW International) - octobre 15th 2014



Mister Chairman

Ladies and gentlemen

Thank you for inviting me to this conference at the Waseda University of Tokyo.

Today I would like to present to you some aspects of the issue of ionising radiation and genetics.

A brief history of the issue begins with the research of Professor Herman Muller.

In nineteen twenty seven, Muller published a paper named “ARTIFICIAL TRANSMUTATION OF THE GENE” in the Journal “Science”.

Muller was the first to use x-rays to induce mutations in fruit flies. The importance of this work was recognized in nineteen forty-six with the Nobel Prize.

Later, Muller became a voice of concern about the consequences of genetic effects of ionising radiation to the health of human beings.

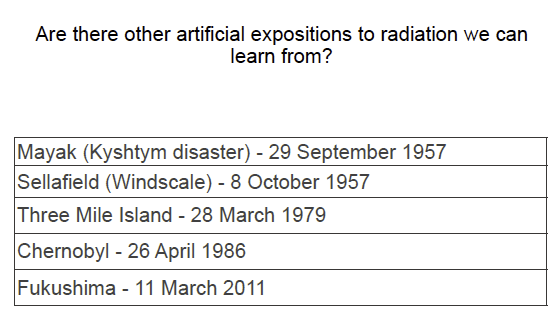

Let’s turn to other examples of man-made radiation.

There have been many major and minor releases of radioactive elements to the biosphere, contaminating soil, air and water. The most recent major accident was the meltdown of the Fukushima Dai-ichi reactors, which released huge amounts of radioisotopes into the biosphere.

Solid cancers and hematological malignancies, immunological diseases, cardiovascular diseases, effects on neurological and brain development and teratogenetic effects have been the short-term consequences of such accidents and, in the long-term, there have been hereditary consequences for the following generations. Three examples of radiation exposure invite our attention.

We begin at Chernobyl in nineteen eighty-six. The information relates to the breeding habits of a species of bird, the barn swallow (Hirundo rustica).

In nineteen ninety-seven Dr. Hans Ellegren and colleagues published an account of “Fitness loss and germline mutations in barn swallows breeding in Chernobyl” in the scientific journal “Nature”.

Ellgren's research team reported an increased frequency of partial albinism, which is a morphological aberration associated with a loss of fitness, among barn swallows, breeding close to Chernobyl.

Heritability estimates suggested that mutations causing albinism were, at least, partly of germline origin.

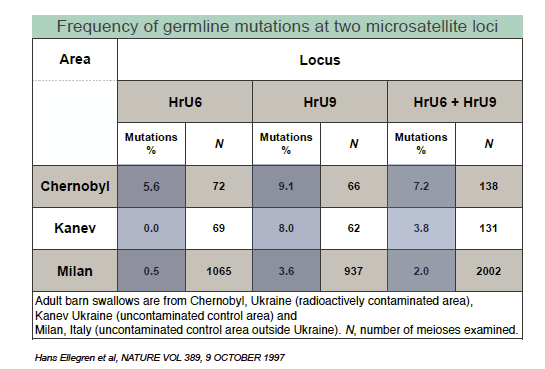

Furthermore, evidence of an increased germline mutation rate was obtained from the analysis at two hypervariable microsatellite loci, indicating that mutations in barn swallows from Chernobyl were two-to-tenfold higher than in birds from control areas in the Ukraine and Italy.

Here in this slide you can see a DNA-fingerprint example.

The authors concluded, and I quote: “Thus both genetic and morphological data suggest that barn swallows breeding in the Chernobyl area have experienced elevated levels of germline mutation rates at both expressed yielding albinism and non-coding, microsatellite loci from the nineteen eighty-six release of radioactive material from the nuclear power plant. This seems to have led to a loss of fitness among individuals in the breeding population, and may also be associated with a significant decline in population size between nineteen eighty-six and nineteen ninety-six. We have no reason to believe that the barn swallow should be uniquely sensitive to radiation among animal species breeding close to Chernobyl or in other radioactively contaminated areas.” End of quote.

Here we see clear evidence of significant, quantifiable harm in a species of bird exposed to the nuclear contamination released at Chernobyl.

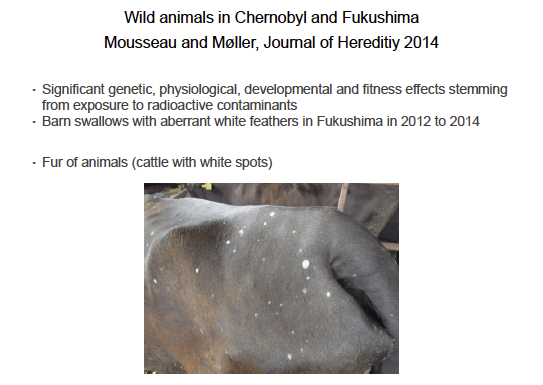

In two thousand and fourteen Dr. Timothy Mousseau and Dr. Andreas P. Møller published a paper concerning recent advances in genetic and ecological studies of wild animal populations in the Chernobyl and Fukushima areas. This paper described significant genetic, physiological, developmental, and fitness effects stemming from exposure to radioactive contaminants. Barn swallows with aberrant white feathers were first detected in Fukushima in two thousand and twelve and were observed in increasing frequencies during two thousand and thirteen and two thousand and fourteen. It may be that the fur of animals (for example, cattle in Fukushima), belong in the same category as partial albinism in barn swallows in Chernobyl and Fukushima.

Now I want to turn to radiation issues directly related to human beings.

I begin with the fundamental question:

Is genetic damage transferred to following generations in human beings?

The answer, I think, is clear. It is.

The scene shifts now to England and the nuclear reprocessing site at Sellafield.

In nineteen eighty-three, Yorkshire Television broadcast the film: “Windscale: the Nuclear Laundry”, which, for the first time, highlighted a disturbingly high rate of childhood leukaemia near Sellafield in Cumbria.

In the official report, which came to be known as the Black report on Sellafield, it was confirmed that the incidence of leukemia was abnormally high in the region of Sellafield.

Later Dr. Martin Gardner and colleagues found in a case control study in nineteen ninety, that with regard to leukaemia, the relative risk for children of fathers working at Sellafield and receiving a total preconception ionising radiation dose of 100 mSv or more, was 6.24.

Normally, we would expect a non-radiation value of 1.0.

In a separate epidemiological study at Sellafield, Dr. Louise Parker and colleagues found a significant risk correlation of a baby being stillborn and the father's total exposure to external ionising radiation prior to conception.

Once again, transgenerational pathways were indicated

Returning to Chernobyl, in nineteen ninety-six Dr. Youri Dubrova and colleagues published an examination of 79 families who remained living in the Mogilev region. The children were all born between February and September in nineteen ninety-four, and were compared with one hundred and nine caucasian families from the United Kingdom.

DNA „fingerprints“ were obtained from all families using multilocus minisatellite probes.

In addition, the parentage of the children analyzed was verified with additional probes. Mutants were defined as novel DNA fragments present in the offspring that could not be ascribed to either parent.

Firstly, mutation frequency was found to be twice as high in the exposed Belorus families as in the UK control group. The estimated exposure of the families was up to 5 mSv per year in the Mogilev area.

Secondly, Dubrova and colleagues were able to establish a correlation between degree of soil contaminated by 137Cesium and mutation rate.

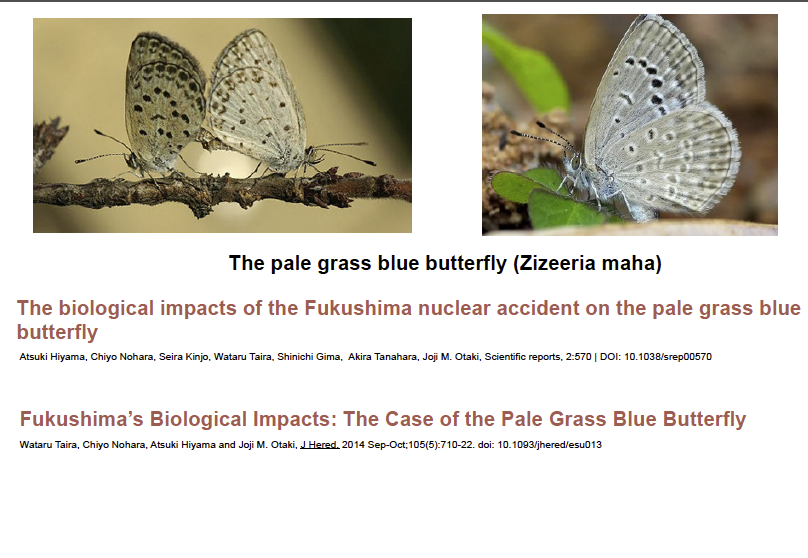

As a final example of genetic consequences of ionising radiation I want now to present to you the story of the pale grass blue butterfly, Yamato shijimi.

Two months after the Dai-ichi accident scientists from the Ryukyus university collected 144 first voltine butterfly adults from 10 localities.

At the time of the accident, the populations of this species were hibernating as larvae and were exposed to external man-made radiation. It is also possible that they ate contaminated leaves during the spring and were thus exposed to some internal radiation.

Captured butterflies were transferred to the Ryukyus university at Okinawa, where the following experiments were performed in a radioactively non-contaminated environment.

Eggs from P-females were reared and normal F1-females different sample locations were crossed with normal F1-males from Tsukuba, which is the furthest city from the NPP Dai-ichi zone where the sampled irradiated butterflies had been collected.

The results of the laboratory experiments showed both physiological and genetic damage. The parental generation, or P-generation, did not have as many abnormalities as subsequent filial ones but there were some and they were physiological. The experiment showed more overall abnormalities in F2-generations and the researchers found inherited traits from the F1-generation. Therefore, the reseachers concluded that germline must be involved.

Similar abnormalities induced by external and internal low-dose exposures were experimentally reproduced in individuals taken from a non-contaminated area.

It seemed clear to the researchers that the butterfly was measurably affected by radioactive pollution of the environment caused by the reactor accident at Fukushima. The butterflies experienced both physiological effects and genetic hereditary damage.

I want to take a moment to congratulate the Ryukyus group and emphasise that their research is of immense significance in the field of low-dose radiation.

I believe that work of this kind must be continued, and expanded into a full DNA-analysis of this butterfly species.

Let me now draw together what I believe these case studies show us.

●      Firstly - Ionising radiation is mutagenic - this fact has been known since Muller’s pioneer publication in 1927

●      Secondly - Human beings are genetically affected by the process of radiation induced mutagenesis, as are all living organisms

●      Thirdly - Childhood leukemia may have resulted from pre conception irradiation of the spermatogonia of Sellafield workers

●      Fourth - Risk of stillbirths to mothers who conceived a child with fathers working at Sellafield, who had been exposed to radiation prior to conception, correlated with paternal radiation exposure. The link was clear: the higher the dose, the higher the risk.

●      Fifth – We must accept, that both the dose-effect relationship and the exact mechanism of the mutagenic process in human beings are, at this time, not fully understood.

●      Sixth – The families living in the Mogilev area who had been irradiated with a dose of up to 5 mSv per year from 1986 on, and whose children were born in 1994, experienced a two-fold increase in minisatellite-mutations compared with a control group from the UK

●      Seventh - The butterfly study demonstrated huge abnormalities, in both germline and physiological or somatic damage, following the Fukushima accident. Some traits have been passed from the F1 to the F2 generation.

●      Finally - Barn swallows, breeding in Chernobyl, experienced partial albinism, fitness loss and elevated minisatellite mutation-rates. Their population diminished in numbers and a decline in life expectancy was observed. In addition, many other species living in the wild, also experienced an observed decline in population size.

Confronted with these facts and problems I believe that we have an obligation to try to answer some important questions about the possible genetic consequences of the Fukushima disaster and discuss the possible problems of resettlement in contaminated areas which might result in radiation doses of up to 20 mSv per year.

In the light of what we do know, I would respectfully ask the following question:

Firstly, is it reasonable and ethical to resettle children, young fertile or pregnant women in such contaminated areas?

Secondly, are there population groups other than children, pregnant women and their fetuses who are more sensitive to ionising radiation than the general population? If there are, how can we locate and identify such hypersensitive groups?

Finally, should Japan not respect the precept widely recognized as the precautionary principle?

As a general guideline, where there are threats of serious or irreversible damage to human life, lack of full scientific certainty should not be used to weaken ethical standards.

This raises a serious question about resettlement to areas which might expose people to dosages of up to 20 mSv per year.

For the long term good of humanity, I am personally convinced that this precautionary principle should be applied in Japan.

I believe that there is no better rule of thumb than that contained in the proverb “Better safe than sorry”.
